Features:

1. The Autoclave is specially designed for the occasions in use of frequent sterilizations. It is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation.
2. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.
3. This product can be applied in sterilizing for the tooth device, operation device, Sanitary Material and other heat-resisting articles existing in the Dept. of Stomatology, Ophthalmology and lab.
4. Preparation Before Operation
I. Before operation, please connect well to the power source.
II. Connect the power source hole under the back left side of the autoclave and the power socket by the attached power cable inside the product’s package so as to switch on the autoclave.
III. Push down the main power button at the right bottom corner of the front side, when the indicator light is on, it means that the autoclave get through with the shown on the screen.
IV. The autoclave is not heated while under such initialization status.

Specifications:

Rated Voltage: 220V±22V, 50Hz±1Hz, 110V±11V, 60Hz±1Hz
Rated Power: 1800VA / 2000VA
Sterilizing (Pressure/temp.): 0.9-1.3bar/120ºC, 2.0-2.3bar/120ºC (Both of above are Under Standard Atmospheric pressure)
Fuse-Melting pipe: T15A / T30A
Capacity: 18Liters
Capacity of water tank: 2L
Water Consumption volume per recycling round: 0.3L
Operating Temp: 0-40ºC
Inner Container dimensions: Diameter 250* Depth 360mm
Machine dimensions: Length 580*Width 440* Height 380mm
Weight:52kg

Character:

1.Unifies the European B level standard,Has 3 times of pulsation types initial vacuum dry function,the vacuum degree mayreach-0.80bar,Is suitable is antiseptic in the clinic each kind of instrument disinfection,the instruments surplus humidity <0.1%,and the success solved the sterilizer not to be able to disinfect the plastic instrument difficult problem;
2.Entire computers controls,The pressure,the temperature digitization demonstraiton,enables you to operate handily;
3.Jet types steam generator,causes in the pot the temperature to be evener,disinfection deeper level.
4.Pots bodies by 2.5mm stainless steel disposable stretch;

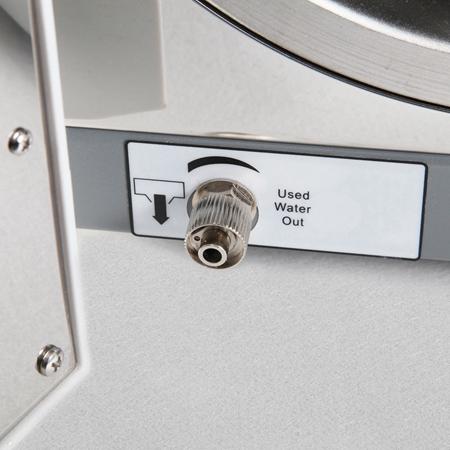

5.Waste water tanks full water alarm system, Finished has let the waste water circulation disinfection the possibility, Causes the disinfection to have the significance;Humanity bottom of the opt freeing port designs can dryly cause to be more convenient;

Packing List:

Main unit*1
Water draining pipe*1
Door spanner*1
Device plate*3
Power cable*1

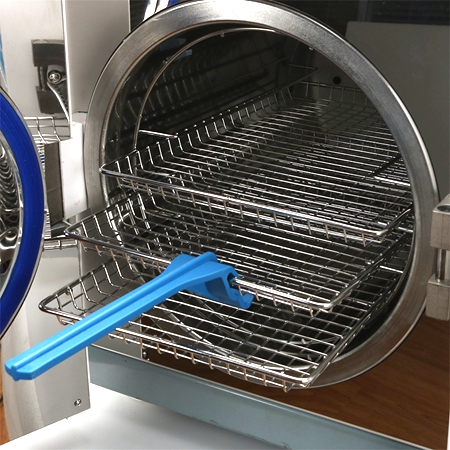

Device shelf*1
Hand support plate*1
Fuse*2
Operation manual*1
Measuring cup*1

Please Note:

1. The autoclave must be placed on the horizontal working base.
2. Must use the distilled water for the purpose of lasting the working life.
3. The object apparatus to be sterilized shall be palced on teh device plate with enough clearnace retained in favor of the air circulation inside the sterilizing room.
4. Empty the water inside the cooling water collecting tank frequently.
5. Not be too closed to the door of the autoclave in case of scald when open the door.
6. Shut off the power before discharging/installing the sealing ring, and the work shall be carried out after further sufficient cooling in case of scald.
7. Don't drag or drop the autoclave during relocation period of the autoclave.
8. The protecting ground shall be reliable.
9. Equipment must be used away from teh magnetic field.

Warranty: One Year! Service: Whole Life!
