Features:
(1)High-Performance Motor: Brushless surgical induction motor provides consistent torque up to 80 N·cm with ultra-low noise operation.
(2)Enhanced Visibility: Dual lighting systems – integrated LED (>30,000 lux) and fiber optics – ensure bright, shadow-free illumination.
(3)Smart Controls:
7-inch touchscreen with real-time parameter monitoring (speed, torque, coolant flow)
One-touch presets for common procedures
Customizable programs via intuitive graphical interface

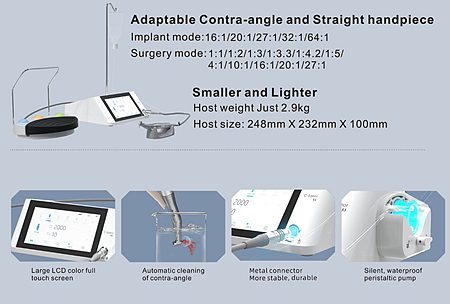

(4)Ergonomic Design: Lightweight contra-angle handpieces (autoclavable) reduce fatigue during prolonged surgeries.
(5)Precision Cooling: 4 adjustable coolant levels (up to 50 mL/min) with built-in peristaltic pump.
(6)Safety Systems: Overload protection, thermal sensors, and sterilization-compatible components.

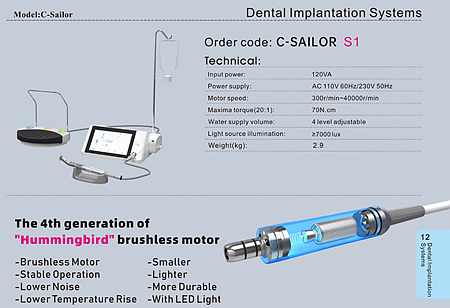

Technical:
Input power: 120VA
Power supply: AC110V 60Hz/230V 50Hz
Motor speed:300r/min-40000r/min
Maxima torque(20:1): 70N.cm
Water supply volume: 4 level adjustable
Light source illumination: ≥7000lux
Weight(kg): 2.9
Operational Benefits:
1. Efficiency Boost: Rapid parameter adjustments via touchscreen and multifunction metal pedal.
2. Surgical Precision: 0.1 rpm speed increments and torque control for osteotomy preparation.
3. Infection Control: Fully autoclavable cables and handpieces meet ADA sterilization guidelines.
4. Adaptability: Compatible with both implant placement and surgical extractions.
Target Applications:
Designed for dental surgeons specializing in:
1.Full-arch implant rehabilitation
2.Bone grafting procedures
3.Minimally invasive flapless surgeries
Warranty: One Year! Service: Whole Life!
